Plastic Magnets

Plastic Magnets

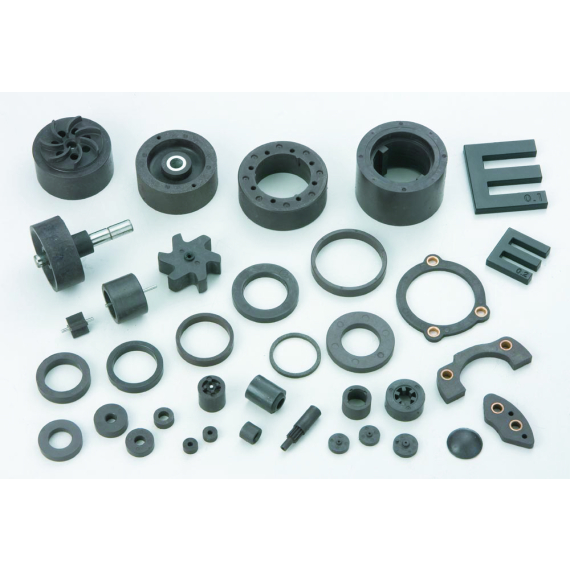

The plastic magnets are molding materials which produced by injection mould process that they can be directly molded into other assembly components. Its main composition includes ferrite magnetic powder, plastic resin, rare earth metal powder, and other subordinate materials.
PRODUCT INFORMATION
Product ID: PM

The plastic magnets are molding materials which produced by injection mould process that they can be directly molded into other assembly components. Its main composition includes ferrite magnetic powder, plastic resin, rare earth metal powder, and other subordinate materials. Furthermore, the plastic magnets are the first magnetic polymer that can fully function at the room temperature so as to benefit commercial usages.
These plastic magnets from Magtech Magnetic Products Corp. are classified as non-metallic one which was created by researchers at the University of Durham leading to a new gate of magnetic materials applications. During injection process, the powder is oriented by magnetic field, we call this material is anisotropic magnet; on the contrary, we call it as isotropic magnet.
The magnetic power of plastic magnet is between isotropic ferrite and anisotropic ferrite. However, they have a high precise dimension yet durable. Having stable state in the air and high density, these magnets can used for several applications such as computer hardware, medical devices, etc.



Specifications:

Physical Properties:
Temp. Coeff.: - 0.19%/ degrees centigrade
Curie Temp.: < 350 degrees centigrade
Density: 3.50~3.70 g/cm3
Anti-extend: 100~120 Mpa
Shrinkage: 0.7~0.9%
According to the material to be oriented or not. having 2 kinds of different plastic magnet:
A. Ferrite series of plastic magnet
B. SmCo series of plastic magnet
C. NdFeB series of plastic magnet
Application:
Micro Motors
Brushless Motors
Bell & Buzzer
Meters
Magnetic rod (for printer)
Headphone
Stepping-Motors
Healthcare Products
De-coder
Sensors
Machine Packing
Package machine
Chuck
Others

Features:

Precision tolerance
Super thin available
All type are available
Not easy broken
Easy magnetization
Slight

Order Information:

Minimum Order: Case by Case
FOB: Negotiable
